ASPERIOT: EM500-SWL

https://www.jotio.tech/web/image/product.template/402/image_1920?unique=6055169

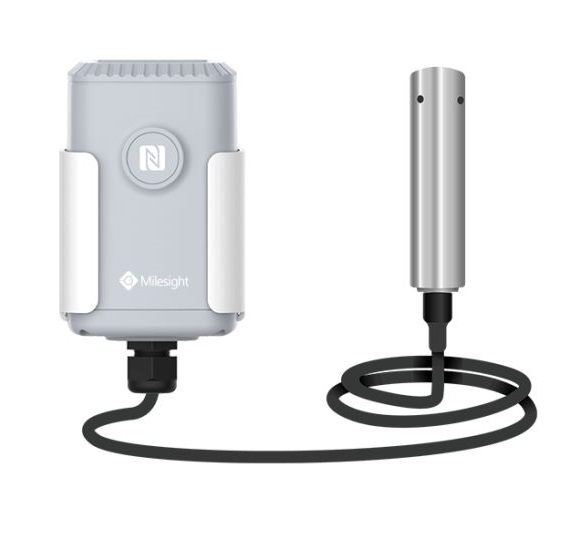

Highly durable sensor for measuring water levels in tanks or open water up to 10 meters.

11,071.50 Kč 11071.5 CZK 11,071.50 Kč  With VAT

0.00 Kč  With VAT

Not Available For Sale

  • Lenght of cable

This combination does not exist.

Contact Us


Accurate and powerful

The sensor with stainless steel probe is a reliable solution for accurate liquid level measurement. Using data transmission via the LoRaWAN network, the sensor can be easily and efficiently integrated into already existing infrastructures.

Accurate and powerful

The sensor with stainless steel probe is a reliable solution for accurate liquid level measurement. Using data transmission via the LoRaWAN network, the sensor can be easily and efficiently integrated into already existing infrastructures.

Also suitable for harsh environments

The device is designed to withstand the effects of adverse environments. The protective case with a high degree of coverage provides high resistance against water and dust.

Also suitable for harsh environments

The device is designed to withstand the effects of adverse environments. The protective case with a high degree of coverage provides high resistance against water and dust.

Quick and easy installation

Thanks to the possibility of installation on a wall or pole, deployment of the device is quick and easy. Placing on a pole is advantageous when the location of the wall is not suitable or installation on it is not possible.

Quick and easy installation

Thanks to the possibility of installation on a wall or pole, deployment of the device is quick and easy. Placing on a pole is advantageous when the location of the wall is not suitable or installation on it is not possible.

Parameters and specifications

​Dimension​ ​ ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​105,4 x 71 x 69,5 mm
Frequency ​ ​ ​ ​  ​ ​​ ​ ​ ​​CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power ​ ​ ​ ​ ​ ​ ​​  ​ ​​ ​ ​ ​ ​​20 dBm
Sensitivity ​ ​ ​  ​ ​​​  ​ ​​ ​ ​ ​ ​ ​ ​-147 dBm @300bps
Mode ​ ​​ ​  ​ ​ ​ ​ ​ ​ ​ ​ ​OTAA/ABP Class A​
Range ​ ​ ​  ​ ​ ​ ​ ​ ​ ​​​to 10 m
Accuracy​ ​ ​  ​ ​ ​ ​ ​ ​ ​ ​ ​​±0,5%​
Cable length ​ ​ ​ ​ ​ ​ ​ ​ ​ ​1,5 m
Battery ​ ​ ​  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ER34615 Li-SOCL2 19000 mAh Battery
Battery Life ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​​to 10 years
Operating Temperature ​ ​ ​ ​ ​ ​ ​ ​​-30°C to +70°C​
Ingress Protection ​ ​ ​ ​ ​ ​ ​ ​ ​ ​IP66
Installation ​​ ​ ​ ​ ​ ​Pole, wall or DIN Rail Mounting


​Where to apply and areas of application

The device can be used to monitor water levels in wells, rivers and streams, or to monitor and measure ool levels to determine the exact volume in real time.



Parameters and specifications

Dimension
​105,4 x 71 x 69,5 mm

Frequency CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923

Tx Power
20 dBm

Sensitivity
-147 dBm @300bps

Mode
OTAA/ABP Class A​

Range
to 10 m

Accuracy
±0,5%​

Cable length
1,5 m

Battery
ER34615 Li-SOCL2 19000 mAh

Battery Life
to 10 years

Operating Temperature
-30°C to +70°C​

Ingress Protection
IP66

Installation
Pole, wall or DIN Rail Mounting


​Where to apply and areas of application

The device can be used to monitor water levels in wells, rivers and streams, or to monitor and measure ool levels to determine the exact volume in real time.
