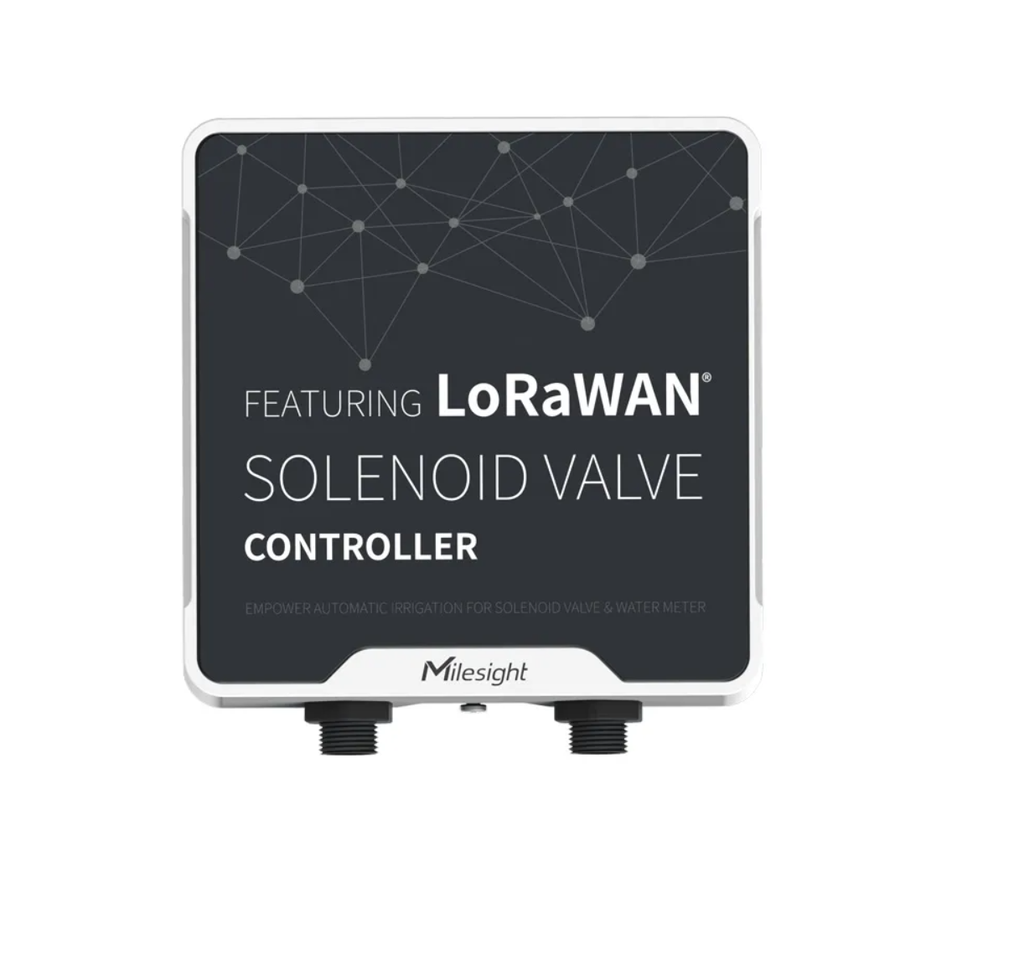

ASPERIOT: UC512-DI
Wireless control unit using LoRaWAN technology. Includes 2 solenoid interfaces for solenoid valves and 1 pulse interface required for 2 pulse meters that can be easily controlled locally or remotely using a cable. The device comes with a built-in 19,000 mAh Li-SOCI2 battery with a lifetime of up to 3 years. For outdoor applications, the device is equipped with a cover for water and dust protection.
Smart irrigation
The device enables wireless control of electromagnetic valves. The control unit is thus an important element of an intelligent irrigation system.
Smart irrigation
The device enables wireless control of electromagnetic valves. The control unit is thus an important element of an intelligent irrigation system.
Local and remote control
The device includes two solenoid interfaces and one pulse interface with support for two pulse meters that can be easily controlled locally or remotely.
Local and remote control
The device includes two solenoid interfaces and one pulse interface with support for two pulse meters that can be easily controlled locally or remotely.
Optimizing water flow
The digital inputs are designed to allow pulse water meters to be connected. The input will allow detection of water flow, which ensures accurate measurement and effective irrigation management.
Optimizing water flow
The digital inputs are designed to allow pulse water meters to be connected. The input will allow detection of water flow, which ensures accurate measurement and effective irrigation management.
Autonomous operation
The device is capable of executing preset commands on its own, even when the network is not available. This feature provides reliability and usability in a variety of operating conditions.
Autonomous operation
The device is capable of executing preset commands on its own, even when the network is not available. This feature provides reliability and usability in a variety of operating conditions.
Robust cover
IP67-rated devices and M12 connectors ensure protection against dust and water. This makes the device suitable not only for outdoor applications, but also for harsh environments.
Robust cover
IP67-rated devices and M12 connectors ensure protection against dust and water. This makes the device suitable not only for outdoor applications, but also for harsh environments.
Long-term battery operation
The control unit is equipped with three replaceable batteries with a lifespan of up to 3 years.
Long-term battery operation
The control unit is equipped with three replaceable batteries with a lifespan of up to 3 years.
Parameters and specifications
Frequency EU868
Tx Power 16dBm
Sensitivity -137dBm
Mode OTAA/ABP Class A, Class B
Interface Type M12, male
Solenoid Interface 2 × Solenoid Interface, 5/9/12 V DC switchable
Solenoid Support 2 Wires Latching Solenoids
GPIO Interface 2 × GPIO Interfaces, Dry Contact
Work Mode Digital Input, Pulse Counter
Power On & Off Mobile App, PC Software (via USB Type-C), Power Button (Internal), Cable Connection
Cable Length 1,5 m
Power Supply 3x 9 000 mAh ER26500 Li-SOCl2 Chargeable Batteries
Battery Life 5-10 years
Ingress Protection IP67
Operating Temperature -30ºC to +70ºC
Installation Wall or Pole Mounting
Dimension 116 × 116 × 45.5 mm (Connectors Excluded)
Where it can be applied and areas of use
The device allows remote management and precise control of automatic irrigation with the possibility of regulation based on time and volume flow requirements.
Parameters and specifications
Frequency
EU868
Tx Power
16dBm
Sensitivity
-137dBm
Mode
OTAA/ABP Class A, Class B
Interface Type
M12, male
Solenoid Interface
2 × Solenoid Interfaces, 5/9/12 VDC Switchable
Solenoid Support
2 Wires Latching Solenoids
GPIO Interface
2 × GPIO Interfaces, Dry Contact
Work Mode
Digital Input, Pulse Counter
Power On & Off
Mobile App, PC Software (via USB Type-C), Power Button (Internal), Cable Connection
Cable Length
1,5 m
Power Suppl
3x 9 000 mAh Replaceable ER26500 Li-SOCl2 Batteries
Battery Life
5-10 years
Ingress Protection
IP67
Operating Temperature
-30ºC to +70ºC
Installation
Wall or Pole Mounting
Dimension
116 × 116 × 45.5 mm (Connectors Excluded)
Where it can be applied and areas of use
The device allows remote management and precise control of automatic irrigation with the possibility of regulation based on time and volume flow requirements.
