ASPERIOT: UG56

https://jotio.odoo.com/web/image/product.template/358/image_1920?unique=a567616

An IoT controller that is used to remotely control and collect data from various devices. It contains several input/output interfaces including analog input, digital input, relay output, serial port, PT100RTD input, which support data transmission from remote devices via LoRaWAN or 3/4G networks. In addition, the UC300 series supports multiple trigger conditions and actions that can operate autonomously even in the event of a network outage

8,554.70 Kč 8554.7 CZK 8,554.70 Kč  With VAT

0.00 Kč  With VAT

Not Available For Sale

This combination does not exist.

Contact Us


Vysoce výkonná 8-kanálová LoRaWAN brána nabízí spolehlivou konektivitu pro širokou škálu aplikací. Se schopností proniknout tři patra nahoru a tři patra dolů uvnitř budovy pokryje okruh na velké vzdálenosti. Gateway umožňuje, aby více zařízení sdílelo stejný signál a omezuje konflikt kanálů, díky čemuž je možné podpora více než 2000 uzlů.

Revoluční připojení

Výkonný čtyřjádrový procesor a čip SX1302 zaručuje spolehlivý provoz a špičkový výkon. S podporou více než 2000 uzlů je ideálním řešením pro inteligentní budovy nebo průmyslová odvětví.

Kompaktní velikost a flexibilita

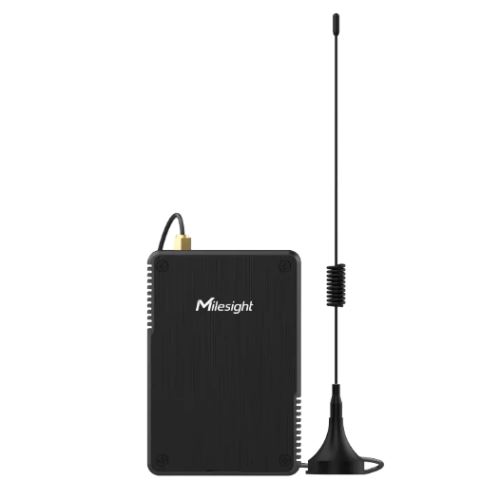

Díky jeho vlastnostem je možné snadné zabudování do malých skříněk. Díky možnosti instalace magnetické antény nebo antény ze skleněných vláken je dosaženo optimálního výkonu v rámci aplikace různých scénářích.

Parameters and specifications

Frekvenční pásmo LoRaWAN  ​ ​​ ​ ​ ​ ​ ​​EU868
Výkon LoRaWAN ​ ​ ​ ​ ​ ​​  ​ ​​ ​ ​ ​ ​ ​ ​  ​ ​​ ​ ​ ​ ​​ ​16dBm
Citlivost LoRaWAN ​ ​ ​  ​ ​​​  ​ ​​ ​ ​ ​  ​  ​ ​ ​​​​ ​​ ​-140dBm @292bps


CPU ​ ​ ​ ​ ​​ ​Quad-core 1.5 GHz, 64-bit ARM Cortex-A35
Memory ​ ​ ​ ​ ​512 MB DDR3 RAM
Flash ​ ​ ​ ​ ​ ​8 GB eMMC
Expandable storage ​ ​ ​1 × Micro SD slot (internal)
Antenna ​ ​ ​ ​ ​Fully Integrated Internal Antenna (Optional: 1 × 50 Ω N-Female External Antenna Connector)
Channel ​ ​ ​ ​ ​8
Output Power ​ ​​ ​27 dBm max
Protocol ​ ​ ​ ​​V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C

Ethernet ​ ​ ​​ ​
Port ​ ​ ​ ​ ​ ​1 × RJ45 (PoE PD support)
Data Rate ​ ​ ​ 10/100 Mb/s (Auto-Sensing)
Interface ​ ​ ​ ​​Auto MDI/MDIX
Mode ​ ​ ​ ​ ​ ​​Full or Half Duplex (Auto-Sensing)

Wi-Fi ​ ​ ​
Antenna ​ ​ ​ ​ ​​Fully Integrated and Internal Antenna
Standards ​ ​ ​ ​​IEEE 802.11b/g/n, 2,4 GHz
Mode ​ ​ ​ ​ ​ ​AP or client mode
Authentication security ​ WPA/WPA2, WEP/TKIP/AES encryption
Tx Power ​ ​ ​ ​ ​​802.11b: 18 dBm +/-2,0 dBm (11 Mb/s)
​ ​ ​ ​ ​ ​ ​802.11g: 15 dBm +/-2,0 dBm (6 Mb/s)
​ ​ ​ ​ ​ ​ ​802.11g: 15 dBm +/-2,0 dBm (54 Mb/s)
​ ​ ​ ​ ​ ​ ​802.11n@2.4 GHz: 14 dBm +/-2,0 dBm (MCS0_HT20)
​ ​ ​ ​ ​ ​ ​802.11n@2.4 GHz: 14 dBm +/-2,0 dBm (MCS7_HT20)
​ ​ ​ ​ ​ ​ ​802.11n@2.4 GHz: 13 dBm +/-2,0 dBm (MCS0_HT40)
​ ​ ​ ​ ​ ​ ​802.11n@2.4 GHz: 13 dBm +/-2,0 dBm (MCS7_HT40)
Operating Temperature ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​​​-40°C to +85°C​
Ingress Protection​ ​ ​ ​ ​ ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​ ​​ ​ ​​IP30
Installation ​ ​  ​ ​ ​ ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Desktop, Wall or Pole Mounting
Dimensions​ ​​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​​ ​ ​ ​ ​ ​  ​ ​  ​ ​ ​​​​ ​ ​110 x 75 x 24 mm


Where to apply and areas of application

​Can be used in monitoring, smart buildings, parking, offices, homes.


Parameters and specifications

Frequency

CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923

Tx Power
20dBm (915) / 16dBm (868) / 17dBm (470)

Sensitivity
-140dBm @292bps

CPU
​Quad-core 1.5 GHz, 64-bit ARM Cortex-A35

Memory
​512 MB DDR3 RAM

Flash
​8 GB eMMC

Expandable storage
1 × Micro SD slot (internal)

Antenna
​Fully Integrated Internal Antenna (Optional: 1 × 50 Ω N-Female External Antenna Connector)

Channel
​8

Output Power
​​27 dBm max

Protocol
V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C

Ethernet

Port
​1 × RJ45 (PoE PD support)

Data Rate
​10/100 Mb/s (Auto-Sensing)

Interface
Auto MDI/MDIX

Mode
​Full or Half Duplex (Auto-Sensing)


Wi-Fi

Antenna
Fully Integrated and Internal Antenna

Standards
​​IEEE 802.11b/g/n, 2,4 GHz

Mode
​AP or client mode

Authentication security
WPA/WPA2, WEP/TKIP/AES encryption

Tx Power
802.11b: 18 dBm +/-2,0 dBm (11 Mb/s)
802.11g: 15 dBm +/-2,0 dBm (6 Mb/s)
802.11g: 15 dBm +/-2,0 dBm (54 Mb/s)
802.11n@2.4 GHz: 14 dBm +/-2,0 dBm (MCS0_HT20)
802.11n@2.4 GHz: 14 dBm +/-2,0 dBm (MCS7_HT20)
802.11n@2.4 GHz: 13 dBm +/-2,0 dBm (MCS0_HT40)
802.11n@2.4 GHz: 13 dBm +/-2,0 dBm (MCS7_HT40)

Operating Temperature
-40°C to +85°C​

Ingress Protection
​​IP30

Installation
Desktop, Wall or Pole Mounting

Dimensions
​110 x 75 x 24 mm



Where to apply and areas of application

​Can be used in monitoring, smart buildings, parking, offices, homes.
