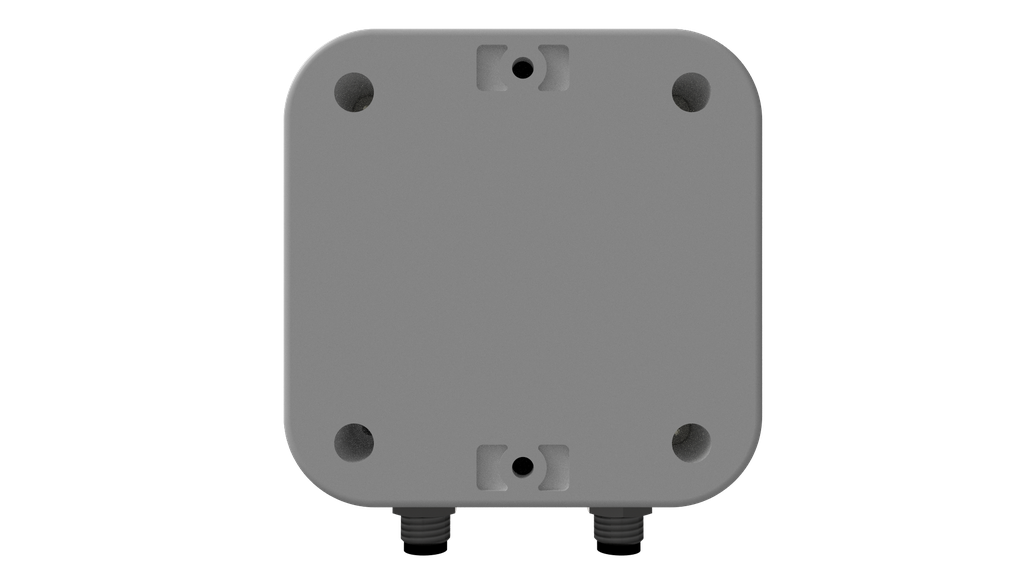

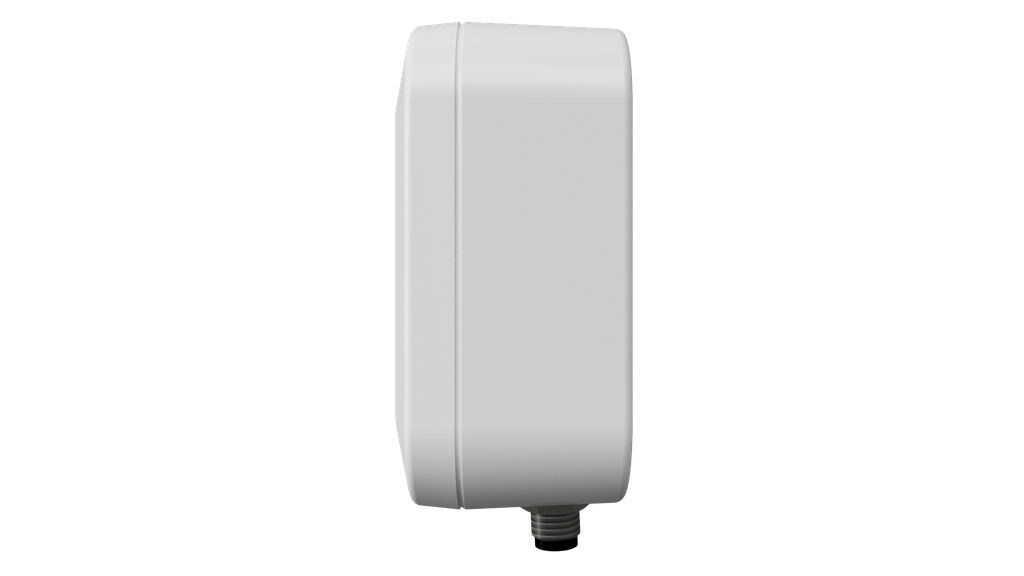

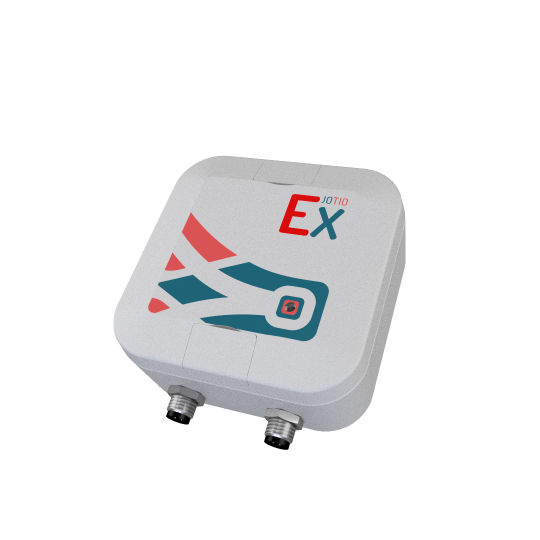

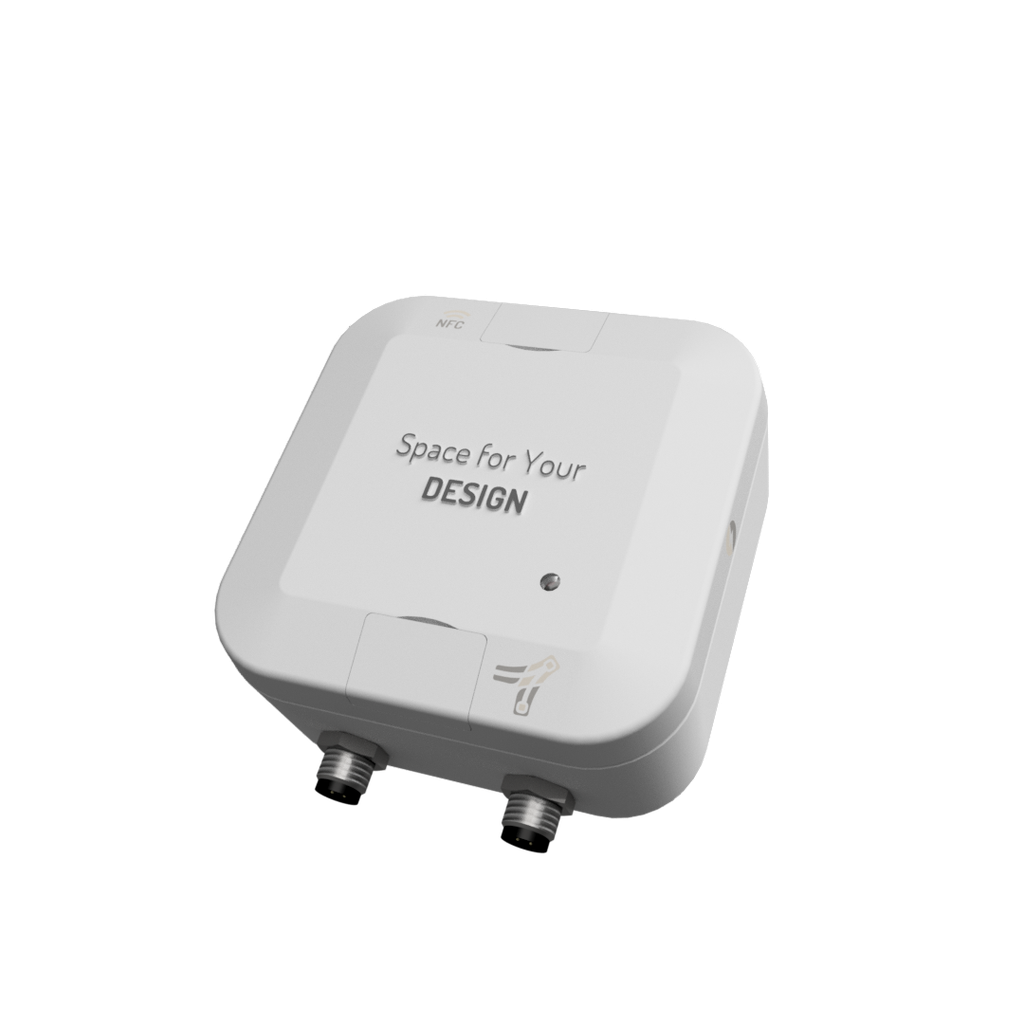

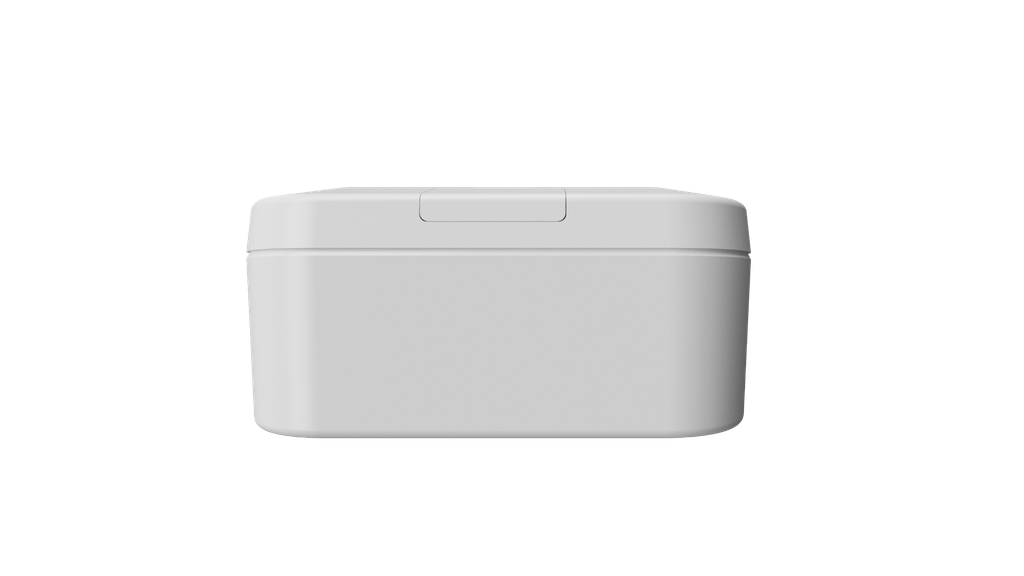

JoTio E1

https://jotio.odoo.com/web/image/product.template/108/image_1920?unique=9c5708c

The multifunctional product of the EX family works in locations with extreme conditions. It allows you to connect a wide range of peripherals and also detects how it has been handled.

9,516.65 Kč 9516.65 CZK 9,516.65 Kč  With VAT

7,865.00 Kč  With VAT

Not Available For Sale

This combination does not exist.


Product description

Industrial variant of the IoT unit with the possibility of connecting external probes (via industrial connectors) for measuring selected variables.


The unit is modular according to the connected peripherals, according to which the product can be individually designed according to the customer.


Very easy to assemble without having to disassemble the product. A hinged door on the front of the product separates the rest of the electronics and is only used for mounting on the element. In this way, the product can be easily placed in the required location. It is also possible to add a special bracket that is used to strap the mast (pole, boom, etc.).


The overall dimensions vary according to the configuration (internal/external antenna, number of connected sensors).

Parameters and specifications

Suitable for ​Environment with extreme conditions

Wireless communication​ ​​LoRaWAN, IQRF

Number of possible peripheries​ ​2

Dimension ​75x75x40 mm

Weight ​​ ​110g-190g (depending on equipment)

Operating Temperature ​​ ​-40 to 85 °C

Colour​ ​​white (ASA - UV stable), grey (ABS)
Ingress protection ​​ ​IP67

Variants

Wireless technology ​LoRaWAN or IQRF

Peripheries A ​JoTio Bus Violet or JoTio Bus Orange

Peripheries B ​JoTio Bus Violet or JoTio Bus Orange

Antenna ​​ ​Internal 868MHz or External 868MHz

Material ​​ ​ABS (grey) or ASA (white)


Product description

Industrial variant of the IoT unit with the possibility of connecting external probes (via industrial connectors) for measuring selected variables.


The unit is modular according to the connected peripherals, according to which the product can be individually designed according to the customer.


Very easy to assemble without having to disassemble the product. A hinged door on the front of the product separates the rest of the electronics and is only used for mounting on the element. In this way, the product can be easily placed in the required location. It is also possible to add a special bracket that is used to strap the mast (pole, boom, etc.).


The overall dimensions vary according to the configuration (internal/external antenna, number of connected sensors).

Parameters and specifications

Suitable for
​Environment with extreme conditions


Wireless communication​
LoRaWAN, IQRF


Number of possible peripheries​
​2


Dimension
75x75x40 mm


Weight
110g-190g (depending on equipment)


Operating Temperature
​-40 to 85 °C


Colour​
​white (ASA - UV stable), grey (ABS)


Ingress protection
​IP67


Variants

Wireless technology
LoRaWAN or IQRF


Peripheries A
​JoTio Bus Violet or JoTio Bus Orange


Peripheries B
JoTio Bus Violet or JoTio Bus Orange


Antenna
​Internal 868MHz or External 868MHz


Material
​ABS (grey) or ASA (white)
