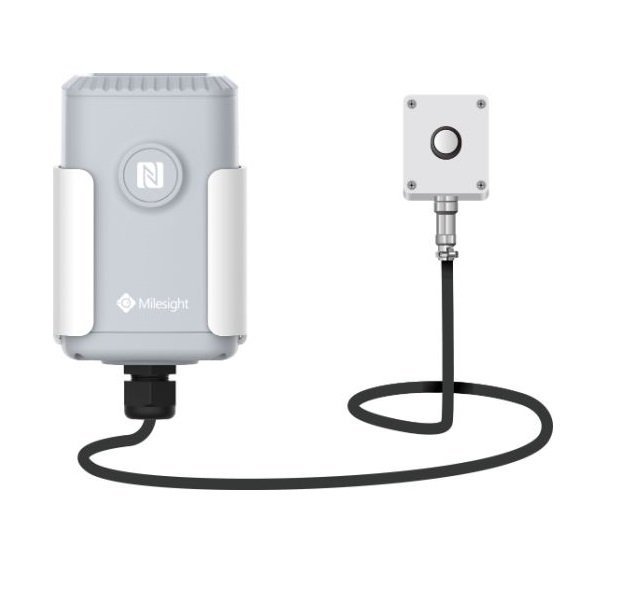

ASPERIOT: EM500-LGT
The device is designed for accurate detection of light intensity in harsh conditions. It has a fast response time of up to 1 second and a measuring range of 0-100,000 lux.
Highly accurate
Innovative sensor for accurate measurement of ambient light intensity with a range from 0 to 100,000 lux and a response speed of 1 second. This extremely fast response allows the sensor to respond to changes in lighting conditions in the monitored environment.
Highly accurate
Innovative sensor for accurate measurement of ambient light intensity with a range from 0 to 100,000 lux and a response speed of 1 second. This extremely fast response allows the sensor to respond to changes in lighting conditions in the monitored environment.
Highly durable
The device stands out for its durability, which is ensured thanks to a high level of coverage. Durability is a key element guaranteeing reliability and longevity. The ability to resist water and dust allows the device to be used for outdoor purposes, where the device is exposed to adverse weather conditions.
Highly durable
The device stands out for its durability, which is ensured thanks to a high level of coverage. Durability is a key element guaranteeing reliability and longevity. The ability to resist water and dust allows the device to be used for outdoor purposes, where the device is exposed to adverse weather conditions.
Quick and easy installation
Thanks to the possibility of placing it on an already existing wall, the installation of the device is very easy. Placing on a pole is an ideal solution especially in cases where a wall is not available or is not suitable for installation. This variability enables optimal use of space and ensures that the device can be integrated into a wide range of environments.
Quick and easy installation
Thanks to the possibility of placing it on an already existing wall, the installation of the device is very easy. Placing on a pole is an ideal solution especially in cases where a wall is not available or is not suitable for installation. This variability enables optimal use of space and ensures that the device can be integrated into a wide range of environments.
Parameters and specifications
Frequency EU868
Tx Power 20 dBm
Sensitivity -137 dBm @300bps
Mode OTAA/ABP Class A
Measuring range 0 - 100 000 luxů
Accuracy ±3%
Resolution 1 lux
Cable Lenght 3 m
Battery ER34615 Li-SOCL2 19000 mAh
Life Battery to 10 years (10 min interval)
Operating temperature -30°C to +60°C
Relative Humadity 0% to 100% (non-condensing)
Ingress Protection IP67 (Transceiver), IP65 (Light Sensor)
Installationí Pole, wall or DIN Rail Mounting
Dimension Transceiver: 105,4 x 71 x 69,5 mm
Light Sensor: 64 x 58 x 34 mm
Where to apply and areas of application
The device can be used for brightness control in security, horticulture or floristry.
Parameters and specifications
Frequency EU868
Tx Power 20 dBm
Sensitivity -137 dBm @300bps
Mode OTAA/ABP Class A
Measuring range 0 - 100 000 luxů
Accuracy ±3%
Resolution 1 lux
Cable Lenght 3 m
Battery ER34615 Li-SOCL2 19000 mAh
Life Battery to 10 years (10 min interval)
Operating temperature -30°C to +60°C
Relative Humadity 0% to 100% (non-condensing)
Ingress Protection IP67 (Transceiver), IP65 (Light Sensor)
Installationí Pole, wall or DIN Rail Mounting
Dimension Transceiver: 105,4 x 71 x 69,5 mm
Light Sensor: 64 x 58 x 34 mm
Where to apply and areas of application
The device can be used for brightness control in security, horticulture or floristry.
Parameters and specifications
Frequency
EU868
Tx Power
20 dBm
Sesitivity
-137 dBm @300bps
Mode
OTAA/ABP Class A
Range
0 - 100 000 luxů
Accuracy
±3%
Resolution
1 lux
Cable lenght
3 m
Battery
ER34615 Li-SOCL2 19000 mAh
Battery life
to 10 years (10 min interval)
Operating Temperature
-30°C to +60°C
Relative humadity
0% to 100% (non-condensing)
Ingress Protection
IP66
Installation
Pole, wall or DIN Rail Mounting
Dimension
Transceiver: 105,4 x 71 x 69,5 mm
Light Sensor: 64 x 58 x 34 mm
Where to apply and areas of application
The device can be used for brightness control in security, horticulture or floristry
