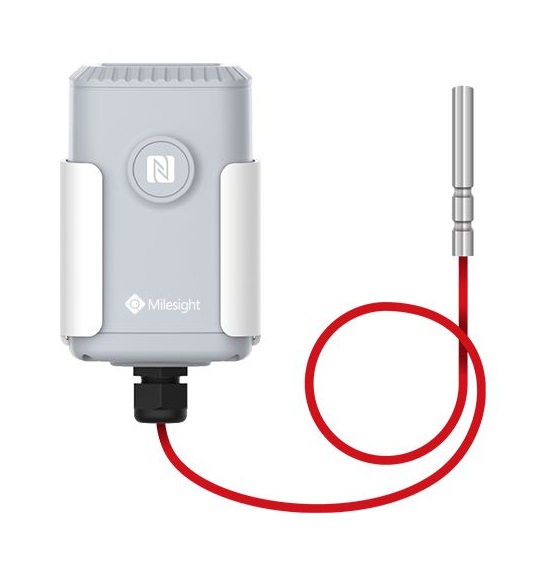

ASPERIOT: EM500-PT100 T200

https://www.jotio.tech/web/image/product.template/400/image_1920?unique=625b709

Sensor with precise industrial temperature sensor from -50 to 200 °C. Thanks to the sensor, problems can be detected early and dangerous accidents can be prevented.

5,121.93 Kč 5121.93 CZK 5,121.93 Kč  With VAT

0.00 Kč  With VAT

Not Available For Sale

This combination does not exist.

Contact Us


Efficient and easy temperature monitoring

This smart industrial sensor with LoRaWAN technology ensures reliable temperature monitoring even in the harshest conditions. Thanks to its low power consumption, it will last up to 10 years in operation. This makes it the ideal solution for long-term, worry-free temperature monitoring.

Robust cover

The sensor is designed to withstand harsh environmental conditions. Thanks to the high degree of protection, it can withstand temperatures from -50°C to +200°C. The device is thus suitable for various scenarios and situations.

Application options

Application options

Thermal Sets

Industrial furnaces

Industrial boilers

Thermal Sets

Industrial furnaces

Industrial boilers

Parameters and specifications

Frequency
​EU868

Tx Power
20 dBm

Sensitivity
-147 dBm @300bps

Mode​
OTAA/ABP Class A​

Connection Type
3-wire connection​

Range
​-50 to +200 °C

Accuracy
±0,5%​

Resolution
0,1°C

Cable Length
1,5 m (Customizable)

Probe Type
Straight tube​

Battery
ER34615 Li-SOCL2 19000 mAh

Battery Life
up to 10 years

Operating Temperature
-30°C to +70°C​

Ingress Protection
IP67

Installation
Pole, wall or DIN Rail Mounting

Dimension
105,4 x 71 x 69,5 mm


Where to apply and areas of application

The device is universally used to measure extreme temperatures in a wide range from -50 to +200 °C in heat sets, industrial boilers, air conditioners or piping systems.

Parameters and specifications

Frequency ​ ​ ​ ​ ​​EU868

Tx Power ​ ​ ​ ​ ​ ​ ​ ​​  ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​ ​​​20 dBm

Sensitivity ​ ​ ​ ​ ​  ​ ​​​  ​ ​​ ​ ​ ​  ​ ​ ​​​-147 dBm @300bps

Mode ​ ​​ ​  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​​ ​OTAA/ABP Class A​

Connection Type​ ​ ​ ​ ​ ​​​3-wire connection​

Range ​ ​  ​ ​ ​ ​ ​ ​  ​ ​ ​​ ​ ​ ​-50 to +200 °C

Accuracy​ ​  ​ ​ ​ ​ ​  ​ ​ ​ ​​ ​ ​ ​ ​ ​ ​​±0,5%​

Resolution​ ​  ​ ​ ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​​0,1°C

Cable Length ​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​​ ​ ​ ​1,5 m (Customizable)

Probe Type​ ​ ​ ​ ​ ​ ​ ​ ​ ​Straight Tube​

Battery​ ​ ​  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ER34615 Li-SOCL2 19000 mAh

Battery Life ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​​10 years

Operating Temperature ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​​​-30°C to +70°C​

Ingress Protection ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​​​IP67

Installation​ ​  ​ ​ ​ ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Pole, wall or DIN Rail Mounting

Dimension    ​​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​  ​ ​ ​ ​​​​​​105,4 x 71 x 69,5 mm



​Where to apply and areas of application

The device is universally used to measure extreme temperatures in a wide range from -50 to +200 °C in heat sets, industrial boilers, air conditioners or piping systems.
