ASPERIOT: VS133

https://jotio.odoo.com/web/image/product.template/559/image_1920?unique=581acb5

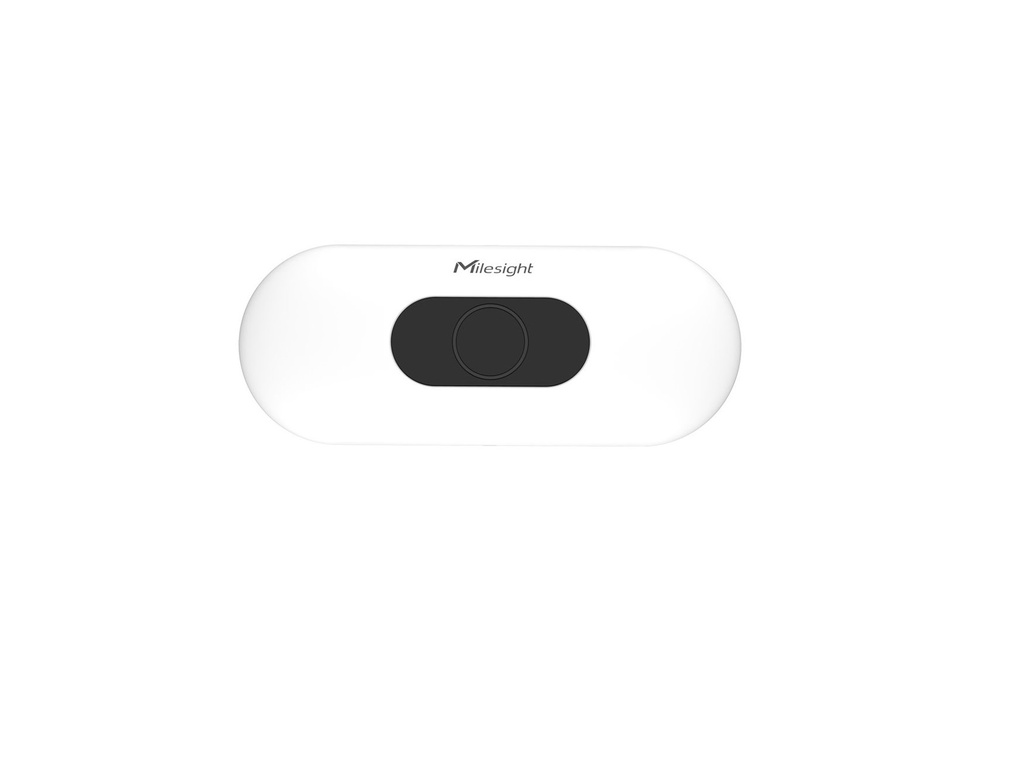

AI-powered people counting sensor allows you to filter certain groups of people

22,988.79 Kč 22988.79 CZK 22,988.79 Kč  With VAT

4,500.00 Kč  With VAT

Not Available For Sale

This combination does not exist.


AI Algorithm

Built-in AI Algorithm

The new generation people counting sensor offers high accuracy and better adaptability for different scenarios. With AI and ToF, crowds can be filtered and area monitoring tailored to specific needs. The sensor is able to filter unwanted objects, is not dependent on the installation height and has a higher resistance to light interference.

In addition to counting people, the sensor recognizes specific categories such as staff or adults and children.

Built-in AI Algorithm

The new generation people counting sensor offers high accuracy and better adaptability for different scenarios. With AI and ToF, crowds can be filtered and area monitoring tailored to specific needs. The sensor is able to filter unwanted objects, is not dependent on the installation height and has a higher resistance to light interference.

In addition to counting people, the sensor recognizes specific categories such as staff or adults and children.

Two-way counting

Two-way counting

The device has the ability to count arrivals and departures at the same time and provides more accurate information by filtering out excess counts of people moving around. People detection is 100% anonymous.

Two-way counting

The device has the ability to count arrivals and departures at the same time and provides more accurate information by filtering out excess counts of people moving around. In addition, people detection is 100% anonymous.

Personnel Management

Accurately capturing traffic and duration within up to 4 customizable areas, users can gain useful information to improve queue management. Passersby are filtered to achieve accurate monitoring.

Personnel Management

Personnel Management

Accurately capturing traffic and duration within up to 4 customizable areas, users can gain useful information to improve queue management. Passersby are filtered to achieve accurate monitoring.

Heat Map

Heat Map

The sensor captures the flow of people, length of stay and movement, creating a comprehensive heat map. It provides a better representation of the space and improves the understanding of customer behavior, based on which it is possible to optimize decision-making and store layout.

Heat Map

The sensor captures the flow of people, length of stay and movement, creating a comprehensive heat map. It provides a better representation of the space and improves the understanding of customer behavior, based on which it is possible to optimize decision-making and store layout.


Application areas

Application areas

Retail Store

Retail Store

Mall

Mall

Subway

Subway

Retail Store

Mall

Subway

Parameters and specifications

ToF FoV ​98° Horizontal, 80 ° Vertical
 ToF Light Beam 940 nm (Invisible)
Measuring Accuracy
​ < 3.5 cm
Detection Range
0.5 to 3.5 m
Recognition Rate
​​​up to 99,8 %
Advanced Feature
Customized Multiple Counting Lines, U-turns Filtering, Bi-directional Counting,
​Children/Adults Differentiation, Staff Detection
Frequency
EU868
Tx Power
​16 dBm
Sensitivity
​-137 dBm @300bps
Mode
OTAA/ABP Class C
Wi-Fi
​​ IEEE 802.11 b/g/n, 2.4GHz
​​​LED Indicator ​1 × RGB LED Indicator
Local Storage
​​​Store up to one million data records and supports to export csvfile
Power Supply
​​​ 12VDC / 2A
Operating Temperature ​​-20°C to 50°C
Relative Humidity ​0-95 % (Non-condensing)
Ingress Protection ​IP40
Dimension
​​ 180 × 26 × 72 mm
Weight ​​ ​226 g
Installation
​Ceiling Mounting, Extended Ceiling Mounting & Lintel Mounting(with Optional Multifunctional Bracket)

​​​

Parameters and specifications

ToF FoV
98° Horizontal, 80 ° Vertical

ToF Light Beam
940 nm (Invisible)

​Accuracy ​
​ < 3.5 cm

​Range
0.5 to 3.5 m

Rozlišení
​​až 99,8 %

Advanced Feature
Customized Multiple Counting Lines, Filter U-turns, Bi-directional Counting, Children/Adults Differentiation, Staff Detection

Frequency
EU868

Tx Power
​16 dBm

Sensitivity
​-137 dBm @300bps

Mode
OTAA/ABP Class C

Wi-Fi IEEE 802.11 b/g/n, 2.4GHz

Button
​1 x Wi-FI/Reset ​

​​​LED Indicators
1 × RGB LED Indicator

Power Input
1 x DC Jack Connector

Local Storage
Store up to one million data records and supports to export csvfile​​

Power supply
​ 12VDC / 2A

Power Consumption
​7,8 W, max 22,2 W

Operating Temperature
​-20°C to 50°C

Relative Humidity
​0-95 % (nekondenzující)

Ingress Protection
​IP40

Dimension
​​ 180 × 26 × 72 mm

Weight
​226 g

Installation
Ceiling Mounting, Extended Ceiling Mounting & Lintel Mounting (withOptional Multifunctional

​​​
