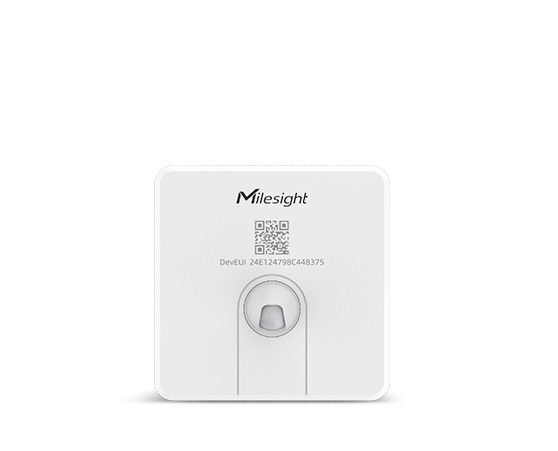

ASPERIOT: VS340

https://jotio.odoo.com/web/image/product.template/560/image_1920?unique=ba1e2e7

4,735.94 Kč 4735.9400000000005 CZK 4,735.94 Kč  With VAT

4,500.00 Kč  With VAT

Not Available For Sale

This combination does not exist.

Contact Us


The ideal solution for those looking for a way to effectively monitor seat occupancy in a variety of areas. The sensor is useful for monitoring workplace occupancy, restaurant table occupancy or seat occupancy in theaters, concert halls, cinemas, conference halls and other public places.

The ideal solution for those looking for a way to effectively monitor seat occupancy in a variety of areas. The sensor is useful for monitoring workplace occupancy, restaurant table occupancy or seat occupancy in theaters, concert halls, cinemas, conference halls and other public places.

Highly sensitive

The sensor is equipped with a highly sensitive PIR sensor, which enables fast and reliable occupancy detection. Thanks to this technology, the sensor is able to immediately react to movement and record when tables and seats are occupied.

PIR

Highly sensitive

The sensor is equipped with a highly sensitive PIR sensor, which enables fast and reliable occupancy detection. Thanks to this technology, the sensor is able to immediately react to movement and record when tables and seats are occupied.

Occupancy detection

Fast reaction

The sensor is able to detect occupancy status after 13 seconds and unoccupied status after 60 seconds, bringing near real-time monitoring of the area.

Fast reaction

The sensor is able to detect occupancy status after 13 seconds and unoccupied status after 60 seconds, bringing near real-time monitoring of the area.


Easy and quick installation

Thanks to wireless operation, there is no need for complex cabling. The practical design and adhesive fastening allow convenient and quick mass deployment.

Quick deployment of the sensor

Easy and quick installation

Thanks to wireless operation, there is no need for complex cabling. The practical design and adhesive fastening allow convenient and quick mass deployment.


Adjustable detection angles

Target areas can be changed as needed. The sensor is equipped with 5 different covers to prevent unnecessary detection. The device is thus suitable for detecting different types of tables with different ranges.


Asperiot: VS340

Adjustable detection angles

Target areas can be changed as needed. The sensor is equipped with 5 different covers to prevent unnecessary detection. The device is thus suitable for detecting different types of tables with different ranges.


Typical Application

hot desking

Office

obsazenost restaurace

Restaurant

obsazenost sálů

Conference

Parameters and specifications


Frequency ​ ​ ​ ​ ​EU868
Tx Power ​ ​ ​ ​ ​ ​​  ​ ​​ ​ ​ ​ ​ ​ ​  ​ ​​ ​ ​ ​​​​ ​16 dBm
Sensitivity ​ ​ ​​ ​  ​ ​​​  ​ ​​ ​ ​​​​​ ​-137dBm @300bps
Mode ​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​ ​  ​ ​​ ​OTAA/ABP Class A​


Technology ​​ ​ ​ ​ ​PIR
Recognition Rate  ​ ​ ​ ​ ​ ​  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​up to 95 %
PIR Detection Area ​  ​ ​ ​ ​ ​  ​ ​​107° Horizontal, 107 ° Vertical
PIR Detection Distance  ​ ​within 1 m


Others
Button ​​ ​ ​ ​ ​ ​1x Power/Reset
Indicator ​​ ​ ​​​ ​1x Status​
Baterry ​ ​ ​  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​​ ​ ​ ​ ​ ​1 x 4000 mAh ER18505 Li-SOCL2 baterie
Battery Life ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​ ​​ ​ ​ ​ ​Around 5 years
Operating Temperature ​ ​ ​ ​ ​ ​ ​​ ​ ​-20°C to +60°C​
Relative Humidity ​ ​​ ​​0-95% (Non-condensing)
Ingress Protection ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​IP30
Installation ​ ​  ​ ​ ​ ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​​3M Tape Mounting, Wall Screw Mounting
Weight ​​ ​ ​ ​​​ ​90g
Color & Material ​ ​ ​ ​White + Grey, PC + ABS (Flame Retardant)
​Dimension​​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​​ ​ ​ ​ ​ ​  ​ ​ ​​​​​ ​​73 x 73 x 26 mm (Without PIR Cover)

Parameters and specifications


Frequency
EU868

Tx Power
16 dBm

Sensitivity
-137dBm @300bps

Mode
OTAA/ABP Class A​

Technology
PIR

Recognition Rate
up to 95 %

PIR Detection Area​
107° Horizontal, 107 ° Vertical

PIR Detection Distance
within 1 m

Others
Button ​
1x Power/Reset

Indicator
1x Status​

Baterry
1 x 4000 mAh ER18505 Li-SOCL2 baterry

Battery Life
Around 5 years

Operating Temperature
-20°C to +60°C​

Relative Humidityelativní vlhkost
0-95°(Non-condensing)

Ingress Protection
IP30

Installation
3M Tape Mounting, Wall Screw Mounting

Weight
90g

Color & Material
White + Grey, PC + ABS (Flame Retardant)

Dimension​​
73 x 73 x 26 mm (Without PIR Cover)
