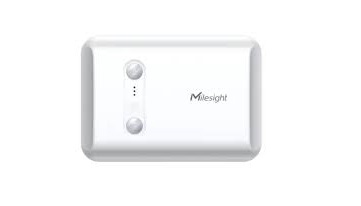

A people counting sensor allows you to track the movement of people in a given space. Thanks to the tracking of people in the space, you will have a complete overview of the movement, which will allow you to better understand the given situation and better optimize operational management. In addition, easy installation ensures quick deployment of the system.

Where can be applied

Parameters and specifications

Frequency ​ ​ ​ ​  ​ ​​ ​ ​ ​ ​ ​ ​EU868
Tx Power ​ ​ ​ ​ ​ ​​  ​ ​​ ​ ​ ​ ​ ​ ​  ​ ​​ ​ ​ ​​16 dBm
Sensitivity ​ ​ ​ ​  ​ ​​​  ​ ​​ ​ ​ ​  ​  ​ ​ ​​​​​-137dBm @300bps
Mode ​ ​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​ ​  ​ ​​ ​ ​OTAA/ABP Class A​

Technology ​ ​ ​ ​ ​Dual PIR
Installation Height ​ ​ ​Ceiling Mount: ≤ 3,0 m
​ ​ ​ ​ ​ ​ ​Wall Mount: 1,2-1,3 m
​Detection Range ​ ​ ​ Single Person: up to 95 %
​ ​ ​ ​ ​ ​ ​Multiple People: up to 80 %
Best Operating Temperature ​​15°C to 32°C
​Bi-directional Counting ​ ​​Support

Temperature
Range ​ ​ ​ ​ ​ ​-30°C to 70°C
Accuracy ​ ​ ​ ​ ± 0.5°C

LED ​ ​ ​ ​ ​ ​1 x LED Indicator (Internal)
Button​ ​ ​ ​ ​ ​ ​1 x Reset Button (Internal)
Advanced Feature​ ​ ​ ​Data Storage, Data Retransmission​

 ​
Battery ​ ​ ​  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​​ ​ ​ ​ ​ ​​ 2 x 2700 mAh ER14505 Li-SOCl2, Replaceable Batteries
Power Supply ​ ​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​ ​ ​ ​ ​ Around 4 Years (10-min Interval, 25°C, 1000 People per Day )
Operating Temperature ​ ​ ​ ​ ​ ​ ​ ​​ ​ ​​​ ​ ​ ​​-20°C to +60°C​
Relative Humidity ​ ​ ​​0% to 95 % (Non-condensing)
Ingress Protection ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​​IP30
Installation​ ​  ​ ​ ​ ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​Ceiling Mount, Wall Mount
Dimension​    ​​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​​ ​ ​ ​ ​ ​  ​ ​ ​ ​​​​​ 100 x 70 x 21 mm
Material ​ ​ ​ ​ ​PC (Flame Retardant)
