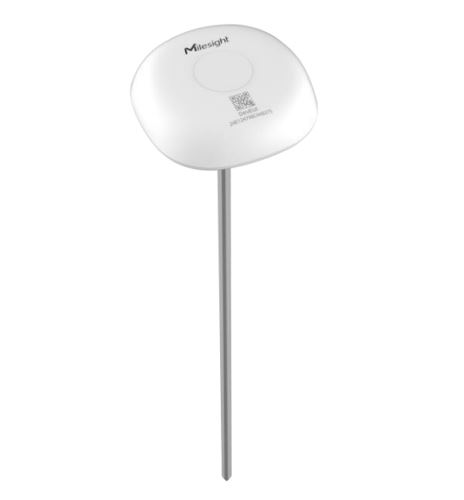

ASPERIOT: TS101

https://jotio.odoo.com/web/image/product.template/596/image_1920?unique=01ae384

Injection temperature sensor with a range of -30°C to +70°C

3,073.40 Kč 3073.4 CZK 3,073.40 Kč  With VAT

0.00 Kč  With VAT

Not Available For Sale

This combination does not exist.

Contact Us


The innovative temperature sensor with stainless steel probe is the perfect solution for accurate temperature monitoring in various areas. Its unique features make it the perfect solution for situations where high emphasis is placed on accuracy, durability and ease of integration.

The innovative temperature sensor with stainless steel probe is the perfect solution for accurate temperature monitoring in various areas. Its unique features make it the perfect solution for situations where high emphasis is placed on accuracy, durability and ease of integration.

Precise needle temperature sensor

Precise and accurate

Thanks to the DS18B20 temperature chip, accurate and reliable measurements are achieved. The advanced measuring unit provides a wide temperature measurement range with an accuracy of ±0.51C and a resolution of 0.1°C.

Precise needle temperature sensor



Precise and accurate

Thanks to the DS18B20 temperature chip, accurate and reliable measurements are achieved. The advanced measuring unit provides a wide temperature measurement range with an accuracy of ±0.51C and a resolution of 0.1°C.

hygienically safe thermometer

Hygienically safe

The probe is made of 316 grade stainless steel. It is characterized by high corrosion resistance and is suitable for applications where high hygiene is required. The protective cover is also made of food-approved material.

hygienically safe thermometer

Hygienically safe

The probe is made of stainless steel grade 316. It is characterized by high resistance to corrosion and is suitable for applications where high hygiene is required. The protective cover is also made of material approved for food use.

Exceptionally durable

The equipment is designed to withstand the harshest conditions. IP67 protection makes the device waterproof and resistant to phosphine corrosion, making it suitable for environments where frequent disinfection is required. The housing is also highly impact resistant, thanks to IK10 protection.


Durable temperature sensor
Durable temperature sensor

Exceptionally durable

The equipment is designed to withstand the harshest conditions. IP67 protection makes the device waterproof and resistant to phosphine corrosion, making it suitable for environments where frequent disinfection is required. The housing is also highly impact resistant, thanks to IK10 protection.

Versatile application

Versatile application

Hay monitoring

Hay monitoring

Compost monitoring

Compost monitoring

Tobacco monitoring

Tobacco monitoring

Hay monitoring

Hay monitoring

Compost monitoring

Compost monitoring

Tobacco monitoring

Tobacco monitoring

Parameters and specifications


Frequency ​ ​ ​ ​  ​ ​​ ​ ​ ​ ​ ​ ​EU868
Tx Power ​ ​ ​ ​ ​ ​ ​​  ​ ​​ ​ ​ ​ ​ ​ ​  ​ ​​ ​ ​ ​​16 dBm
Sensitivity ​ ​ ​ ​ ​ ​  ​ ​​​  ​ ​​ ​ ​ ​  ​  ​ ​ ​​​​​-137dBm @300bps
Mode ​ ​ ​ ​  ​ ​ ​ ​ ​ ​ ​  ​ ​ ​​ ​  ​ ​​ ​ ​OTAA/ABP Class A​


Temperature
Measurement range ​ ​ ​-30°C to + 70°C
Accuracy​ ​  ​ ​ ​ ​ ​  ​ ​ ​  ​ ​ ​ ​ ​ ​  ​ ​ ​ ​ ​​​​​ ​ ​ ​±0,5°C
Resolution ​ ​ ​ ​ ​​0,1°C

Advanced features ​ ​ ​​Data storage, data transfer back, data recoverability, sudden data transfer, temperature change alarm
Battery​ ​ ​  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​​ ​ ​ ​ ​ 1 × 4000 mAh ER18505 Li-SOCl2, vyměnitelná
Battery Life ​ ​ ​ ​ ​up to 10 years (up to 10 years (interval once per hour, 25°C)
Operating temperature​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​ ​​​ ​ ​ ​-30°C to +70°C​
Relativní vlhkost ​ ​ ​ 0 - 95% (noncondensing)
Material ​ ​ ​ ​ ​ ​Transmitter ABS+PC (food grade, corrosion resistant), white
​ ​ ​ ​ ​ ​ Grade 316 steel (food grade, corrosion resistant) silver grey
Ingress Protection ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​​ ​  ​ ​ ​ ​​​IP67
Impact Protection ​ ​ ​ ​IK10 (Transceiver)
Installation ​ ​  ​ ​ ​ ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ Insert Installation
Dimension    ​​ ​ ​ ​ ​ ​ ​ ​ ​  ​ ​ ​ ​​ ​ ​ ​ ​ ​  ​ ​ ​ ​Transceiver ​​​​ Ф 92 × 92 × 26 mm
​ ​ ​ ​ ​ ​ Sensor Probe  Ф 7 × 400 mm

Parameters and specifications

Frequency
EU868

Tx Power
​​16 dBm

Sensitivity
-137dBm @300bps

Mode
OTAA/ABP Class A​

Temperature
Measurement range
-30°C to + 70°C

Accuracy
±0,5°C

Resolution
​0,1°C

Advanced features
Data Storage, Data Retransmission, Data Retrievability, Abrupt Temperature Change Alarm

Battery
1 × 4000 mAh ER18505 Li-SOCl2, Repleceable Battery

Battery Life
up tož 10 years (1 Hour Report Interval,

Operating Temperature
​-30°C to +70°C​

Relative Humidity
0 - 95% (noncondensing)​

Material
Transceiver: ABS+PC(Food-Grade, Phosphine Corrosion resistant), White
Sensor Probe: 316 Stainless Steel (Food-Grade, Phosphine Corrosion Resistant), Silver Grey

Ingress Protection
​​​IP67

Impact Protection
​IK10 (Transceiver)

Installation
Insert Installation

Dimension
Transceiver ​​​​ Ф 92 × 92 × 26 mm
​Sensor Probe Ф 7 × 400 mm
